Compressed Air System
S601

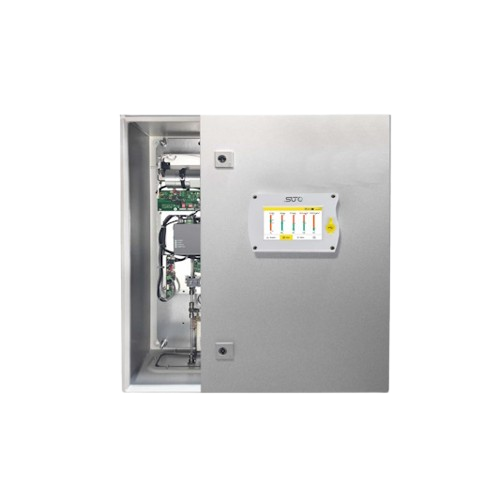

S601 compressed air purity analyzer brings together state of the art technology in one easy to use package, allowing businesses to continuously monitor compliance to ISO8573. The S601 monitors particle, dew point and oil vapor contamination across the full spectrum of IAO8573 requirements including Class 0.
Real time information can be retrieved from the S601 by SCADA systems via MODBUS outputs. The integrated color touch screen display allows users to view all information locally. The data logging function ensures records are kept intact. Alarm points can be set to trigger in the event that contaminants hit your selected limits. An optional external light or siren can be fitted to the alarm.
S601 is quick and easy to install, just connect the unit to power and the compressed air supply.
Specification:
| Product Type | S601 Compressed Air Purity Analyzer |
| Pressure Range | 0.3 to 1.5 MPa |
| Temperature Range | -30°C to +70°C |
| Accuracy |
Dew point: +/- 2°C Oil Vapor: 5% RDG Particle: 50% for smallest size Particle: 95% for all other sizes Pressure: 1% F.S |
| Power Supply | 100 to 240VAC / 50VA |
| Connector |
1 x M12, 5 pole (RS-485) 1 x RJ45 (Ethernet) 1 x main cable with plug |
