Miniflex 1000

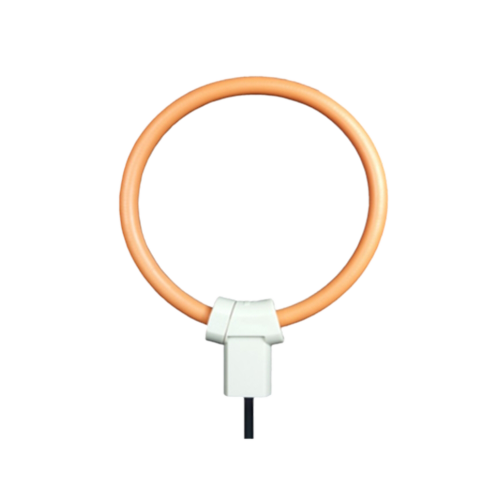

Miniflex 1000 current clamp sensor is an AC RMS current sensor composed of a flexible active part (Rogowski coil model) connected to a compact digital converter, capable of measuring the current carried on a power conductor up to a value of 1000 A ac. The digital converter supplies an output of 4-20 mA DC in linear proportion to the measured current.
Specification:
| Product Type | Current Clamp Sensor |
| Measuring Range | 4 ~ 20mA DC |
| 0A AC = 4 mA DC output | |
| 1,000A AC = 20 mA DC output | |
| Power Supply | 10V DC to 32V DC |
| Accuracy | 0.5% of reading |
| + 0.2% of range | |
| Maximum Output | 21.6 mA DC |
| Service Voltage | < 1,000V CAT III |
| 600V CAT IV |
