Fluid Dynamic

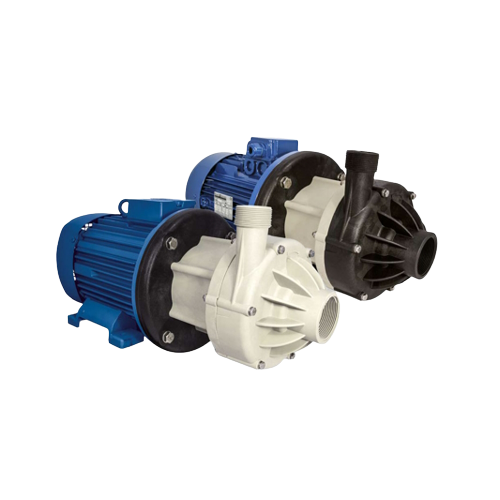

Magnetic Drive Centrifugal Pump
Magnetic drive canned pumps are applied to pumping corrosive, toxic or inflammable liquids, as well as liquids containing solid particles. Several magnets lead the pump in motion, the external magnet, located on the shaft, transmits the motion to the inner magnet, built into the impeller, which is hermetically isolated.
Magnetic drive canned pumps are applied to pumping corrosive, toxic or inflammable liquids, as well as liquids containing solid particles. Several magnets lead the pump in motion, the external magnet, located on the shaft, transmits the motion to the inner magnet, built into the impeller, which is hermetically isolated.Specification:
| Product | Magnetic Drive Centrifugal Pumps DM 6 ~ DM 30 |
| Intake Connection | G 1" f ~ G 1-1/2” f |
| Delivery Connection | G 3/4” M ~ G 1-1/2” M |
| Max. Flow Rate | 6 m3/hr ~ 35 m3/hr |
| Max. Head | 8.5 m ~ 24 m |
| Max. Viscosity | 150 cps |
| Power | 0.37 Kw ~ 2.2 Kw / 0.5 HP ~ 3 HP |
