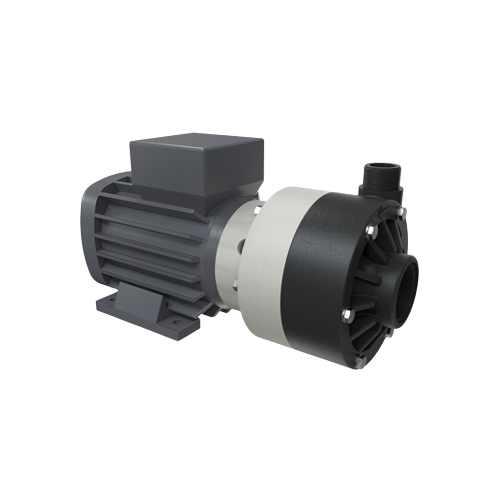

Horizontal Centrifugal Pump
Horizontal chemical centrifugal pumps are made of polymers and feature high performance. They are operated by a direct-drive motor (max. 3000 rpm) for fast liquid transfer and/or drainage with flow rates ranging from 6 to 75m³/hour. Their open impeller allows pumping of even very dirty liquids in continuous flow, with an apparent viscosity of 500 cps (at 20 ° C) and small suspended solids.
Specification:
Product | Horizontal Centrifugal Pump MB 80 ~ MB180 |
Intake Connection | G 1 ½” f ~ G 2-1/2” f or DN40 ~ DN65 |
Delivery Connection | G 1” M ~ G 2” M or DN25 ~ DN50 |
Max. Flow Rate | 6 m³/hr ~ 75 m³/hr |
Max. Head | 7.5 m ~ 38 m |
Max. Viscosity | 350 cps ~ 500 cps |
Power | 0.37 Kw ~ 11 Kw / 0.5 HP ~ 15 HP |
