Fluid Dynamic System

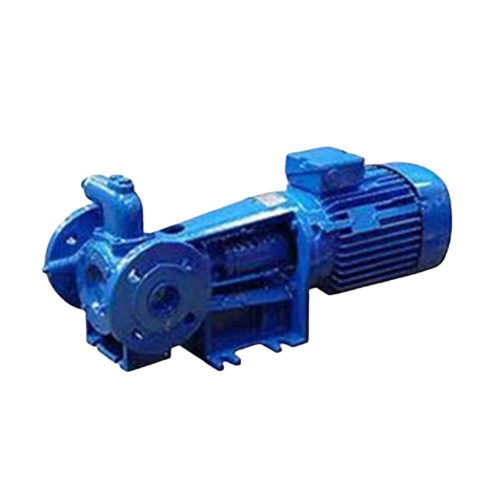

General Purpose Gear Pump
Internal gear pumps in cast iron, for clean, non-abrasive liquids. The simple and compact construction makes it a low-cost pump, often used in modified versions by OEM customers.
A close-coupled OEM model is also available. GP pumps are designed for use with IEC or NEMA flange motors. Available with 90° angular configuration.
Specification:
| Product | General Purpose Pump |
| Capacity Range | Up to 50 m3/h / 225 gpm |
| Speed | Up to 1,750 rpm |
| Suction Lift | Up to 0.5 bar / 15” Hg vacuum while priming |
| Up to 0.8 bar / 24” Hg vacuum while priming | |
| Differential Pressure | Up to 16 bar / 250 psi |
| Viscosity Range | Up to 7,500 cSt |
| Temperature | Up to 150°C / 300°F |
