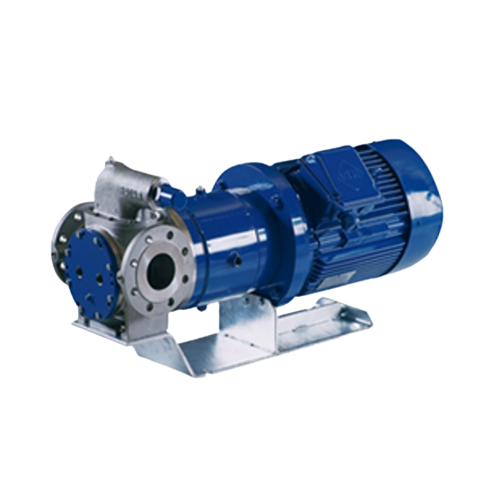

Environmental Duty Pump

Magnetically coupled internal gear pumps for ultimate protection against leakage. As only minimal maintenance is necessary, ED pumps will be a very economical solution compared with traditionally sealed pumps, especially where the application requires the use of double mechanical shaft seals.

Often these applications are very arduous resulting in the seals and support system requiring regular attention and/or replacement. Thus, the life cycle costs for ED pumps are generally much lower than for pumps using two seals. Available with 90° angular configuration.


Product Environmental Duty Pump
Capacity Range Up to 90 m3/h / 400 gpm
Speed Up to 1750 rpm
Suction Lift Up to 0.5 bar / 15” Hg vacuum while priming
Up to 0.8 bar / 24” Hg vacuum while priming
Differential Pressure Up to 16 bar / 250 psi
Viscosity Range Up to 10,000 cSt
Temperature Up to 250°C / 500°F
