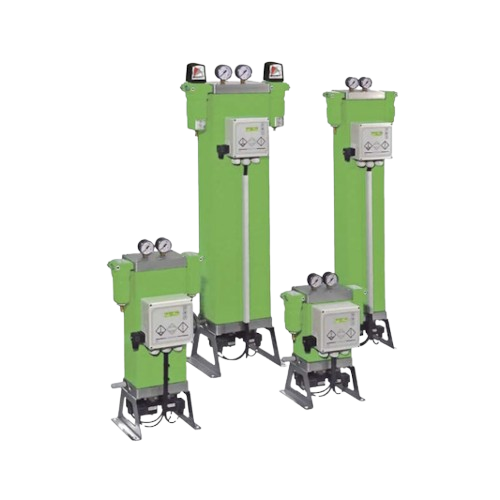

DPS Series (DPS 1~8)

The Series DPS 1-8 adsorption dryers efficiently dry compressed air to pressure dew points as low as -70°C, preventing condensation and liquid water formation. They are built with a powder-coated aluminum body, pressure-rated up to 16 bar, and feature leak-free valve plates for minimal pressure loss.

The dryers use a 2-layer desiccant bed(20% water-resistant silica gel and 80% molecular sieve) for effective moisture removal. Standard features include pressure gauges, pre-filters, and after-filters, with easy wall mounting. The C1 control unit manages all operating modes and allows integration into an existing system. With an optional dew-point sensor, energy savings of 20-70% can be achieved through variable cycle mode. The DPS 1-8 A variant includes an activated carbon oil vapor adsorber for additional purification.
